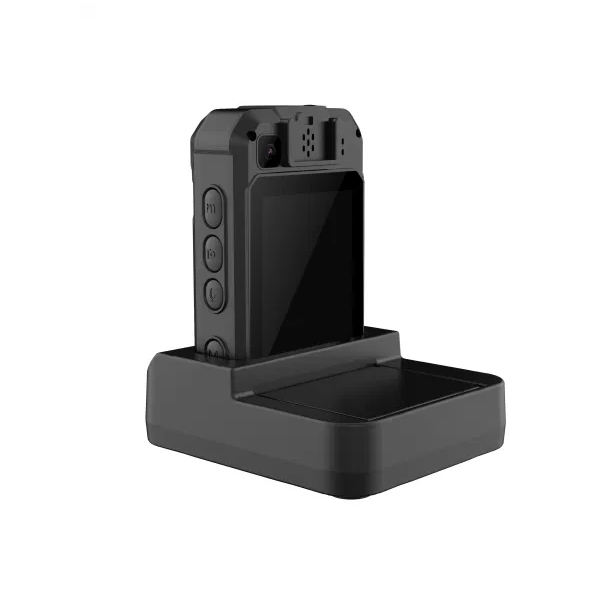

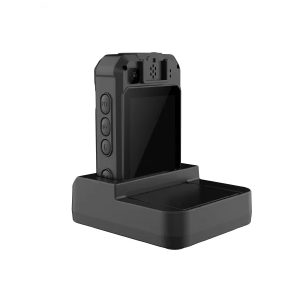

Sentinel SBC-1074G Body Worn Camera
Short Description:
Sentinel SBC-1074G Body Worn Camera with 4G LTE technology, has the capability of direct transmission of live video, audio and GPS locations in real time, day or night, to headquarters. This provides situation awareness to observing security personnel and gives them the ability to make critical assessments and decisions to assist the officer in the field. This is accomplished while simultaneously recording the video on the camera itself.
SPECIFICATIONS
| Chipset | Ambarella S5L |
| System | Linux 4.9.110 |
| LCD | 2.0” Full HD LCD screen |
| Image Sensor | 1/3” Color CMOS sensor (OS05A10), 5MP |
| Viewing Angle (HOV) | 127º (HOV), 170º (FOV) |
| Memory | Default 32GB SD Card (SDHC, SDXC max.256GB) |
| Microphone | Built-in, ¢2.5mm |
| Data port | 1x USB for charging, communication with PC, firmware ugprade |
| Audio interface | 2.5mm jack for headphone, microphone and PTT |
| Indicator | Charging, Video record, Audio record, Snap, Idle |
| Two-way Audio | Support 2-way audio between BWC
Support 2-way audio between BWC and platform |
| Time Synchronization | Synchronize date/time with GPS, internet, PC |
|
Software |
Bodycam tool, PC player, CMS, Mobile app
(Live monitoring, GPS positioning, track, playback, intercom, remote command and etc, for 3G/4G device) |
| Default | Reset with factory default setting |
| PHOTO | |
| Output pixel | 16/32/40/64/80 Mega pixels |
| Image Resolution | 1920×1080 ~ 10368×5920 (max.) |
| Photoburst | Snap during recording (resolution based on record) |
| Digital Zoom | 4X/8X |
| Shutter control | Electronic shutter |
| VIDEO | |
| Video transmission | 1920×1080, 1280×720 for 4G live view |
| Video record | 2688×1512, 2560×1440, 1920×1080 |
| Video format | H.264 (MP/HP Level 5.1)/H.265 (MP Level 5.0) |
| Audio input | 1x MIC input, support intercom connection |
| Audio format | PCM (AAC, optional) |
| Low bit rate | Ambarella Smart HEVC technology for volume saving |
| Frame rate | 1512p/25fps, 1440p/30fps, 1080p/30fps (1080p/60fps) |
| Video record mode | Video & Audio synchronization |
| Pre-record/Post-record | 60s/30s/20s/10s/Off adjustable (customizable) |
| Video recording time | 1080p30 record at 14h (3500mAh), 15h (4200mAh) |
| GUI OPERATION | |
| LED | Auto switch, IR Cut, High-power LED, Laser positioning, Flash light |
| Night vision | Infrared light, 10meters with visible shape image |
| IR Cut | Automatic |
| OSD language | English/ Spanish (other language by request) |
| QR Code | Bind Server IP and user ID with QR Code |
| Startup time | < 6 sec (from power on to recording) |
|
Parameter settings |
LCD menu (Display & record date/time, device ID, officer ID, location, speed; Overwrite; Safe mode; Video Encryption; Log) |
| Playback | Playback file by time and alarm 1/128x to 128x Fast Forward/ Rewind |
| Button | Power/ Video Record/ Photo/ Voice Record/ Replay/ Shut-off/ SOS/ Intercom/ Reset |
| Alarm input (SOS) | alarm input shown in platform (3G/4G model) |
| Menu lock | password authentication on menu configuration or power off |
| MECHANICAL | |
| Battery | 3500mAh/ 4200mAh ( options) |
| Charging Cradle | Fast charging @2A, USB data tramission, splicable |
| Built-in modules | GPS, Wi-Fi, 3G/4G_LTE (optional) |
| Ingress protection | IP68, IK09, MIL-STD-810G |
| Drop test | 2.5meter |
| Charging time | 3 hours (use the standard power adaptor) |
| Charge base | for battery charging and data transmission |
| Working temperature | -30℃-+60℃ / -22℉-+140℉, RH 40%~80% |
| Weight | 145g / 0.319lbs |
| Dimensions (L x W x H) | 83.2 x 54.8 x 29.8mm / 3.276″ x 2.157″ x 1.173″ |
Brochure and product Flyers: Sentienl SBC1074 Bodycamera
