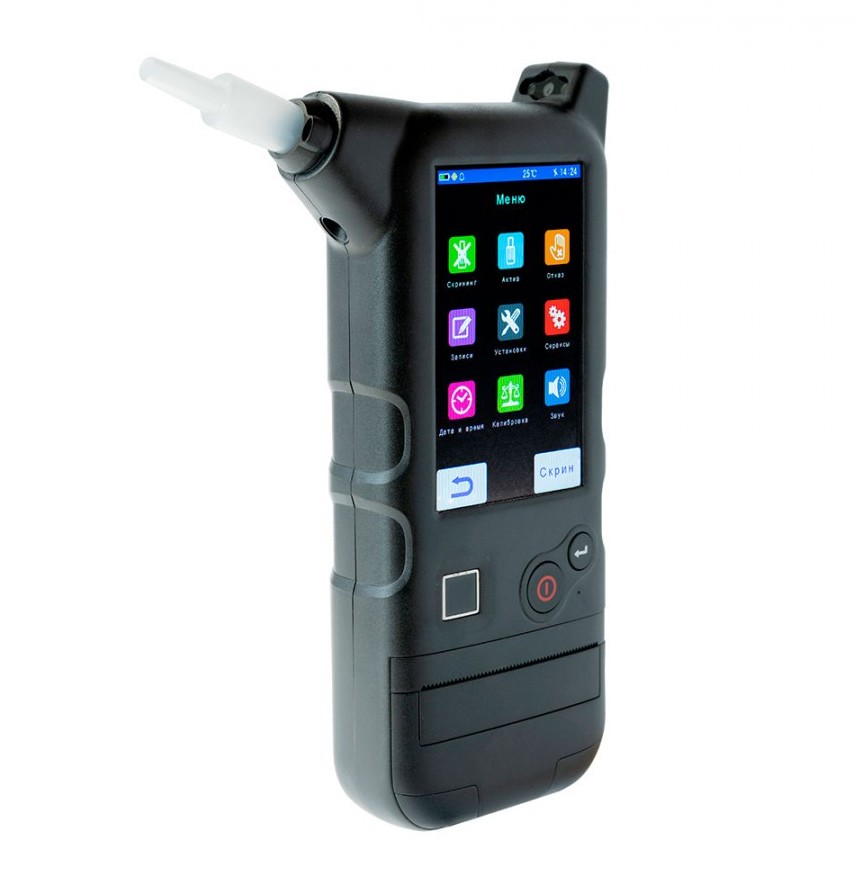

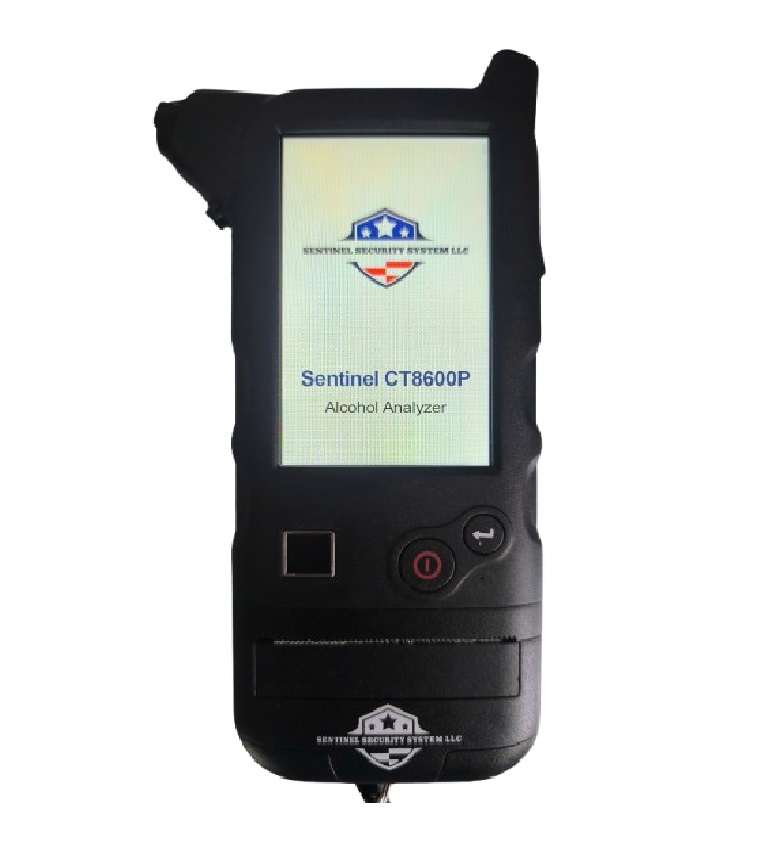

Sentinel CT8600P Smart Alcohol Analyzer

EVIDENCE PRECISION

Sentinel CT8600P provides highly reliable, precise and fast test results thanks to newly developed new generation electrochemical sensor technology. With the high stability and accuracy enabled by the sensor technology the device is presented to use as evidence class breathalyzer in the field of traffic control, security forces, work safety and health services.

MEASUREMENT MODES

Sentinel CT8600P has user selectable the modes of measurement Active Mode and Passive Mode. Active Mode (must need mouthpiece) is used to test a person as evidence class breathalyzer in the field of traffic control, security forces. In Passive Mode which eases the way of testing of an unconscious person and testing alcohol rate in the ambient air. All measurement modes are saved in the device memory including the reading, date, time, GPS, Pictures.. The camera has a high resolution with infrared illuminator to record the target’s face. The image is stored in the device’s memory along with the measurement result

FINGERPRINT SCANNER

The fingerprint of the person tested is stored in the device’s memory with the measurement result and can be used to confirm that the result belongs to a specific person

GPS LOCATION

The analyzer is equipped with the function of recording the exact coordinates of the site, which are recorded in the device’s memory along with the measurement results and reflected in the printing protocol on the printer.

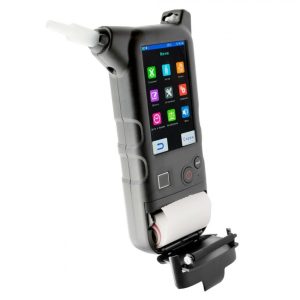

BUILT-IN PRINTER

The printer allows you to print the test result report, in addition to the results, the entered data: name of the person being inspected, a photo of the person, a photo of a fingerprint, an identification number, a vehicle number, a number of inspectors, comments for manual filling.

BUILT-IN CAMERA

The camera has a high resolution with infrared illuminator to record the target’s face. The image is stored in the device’s memory along with the measurement result

DATA INPUT

The operator can input data into the analyzer: the full name of the person being inspected, the vehicle number, the certificate number, as well as optional data about the school and comments. The data is stored in the analyzer’s memory along with the measurement results, date and time.

SPECIFICATIONS CT8600P
Sensor	New Generation Electrochemical Fuel Cell Sensor
Measuring modes	02 modes: Active mode and Passive mode
Sampling instruments	Mouthpiece one-way (Active) & sampling cup (Passive)
Range (BAC)	(0.000-5.500) mg/L
Precision	+/- 0.02 mg/L < 0.400 mg/L +/- 5%> 0.400 mg/L
Warm Up Time	Within 30 seconds
Response Time	Within 3 seconds after sampling
Recycle Time	Within 3 seconds
Working Temp	Between – 10 ºC and + 50 ºC
Storage Temp	Between – 25 ºC and + 70 ºC / 15 – 95% r.h.
Sampling volume	1.2L (adjustable) or maximum 6 secs
Units	‰ BAC, mg/100 ml, % BAC, mg/l, % g/100 ml
Display	4.0 inch TFT color touch screen
Memory store	Built-in memory up to 100.000 test results
Battery capacity	7.4V, 2.500mAh Lithium-ion battery/ up to 2000 time testing
Data management & security	Connect & transmit data to PC using professional data management software.
Data transfer (Optional)	Allow transfer test result to server over 4G network 4G Sim card slot installed on body
GPS receiver	Built-in GPS
Security device access	Password and fingerprint
Printer	Built-in thermal printer on body
Built-in Camera	5.0MP, Automatic focusing with infrared
Software	Included professional software
Alarm	Calibration expiration, low battery
Dimensions	200mm x 104mm x 37mm
Weight	375 gram ( battery included)

Brochure and Product Flyers: CT8600P Brochure
