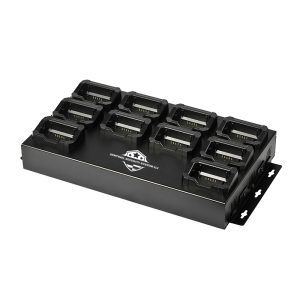

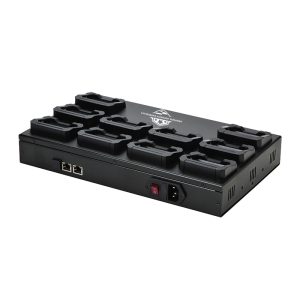

Sentinel 10-Ports Network Docking Station

No need PC, no Windows OS, unattended, and no need to worry about virus invasion.
Recorded files on body camera are directly uploaded to the local server or cloud server, safe and efficient.
Each data terminals and docking port has a unique ID number, which can record uploading location along with recorded files.
Each data terminal can support 10 body cameras to upload files in parallel, the highest transmission speed can reach 100Mbps * 10 port = 1Gbps.
The indicator lights on the body camera indicate the status of file transmission is in progress or completed.
Support network cascade of multiple data terminals, only one single network cable needed for LAN access.
Each docking port has a mechanical bayonet with spring, easy to operate, stable and reliable.
Support 2A * 10 ports fast charging in parallel, 100V ~ 240V wide voltage AC power supply.
Dimension 335x200x62mm
Weight: 1.5kgs
Material Aluminum Base + ABS Cradle

Specifications

Model	SDSN-10
interface	Ports	10pcs per station
	Connect Mode	5pin Thimble Contact
	Lock Mode	Buckle
	Power Switch	Yes
Power	Power input	100V~240V/ 3.8A MAX
	Power output	Maximum 5V/ 25A
	Power for charging	5V/ 2.0A per port
Network	RJ45 port	2x gigabit ethernet port
	Maximun Speed	125MBps
	Protocol	TCP/IP, UDP
	IP address	Static IP & DHCP
	Dock Port ID	Automatic Port ID identification
	DMS unique ID	Location report of Camera includes DMS ID and Dock Port ID
Fingerprint	Fingerprint capicity	3000 pcs
Fingerprint	Fingerprint reading speed	<1.5 seconds
NFC	Card type	Mifare one(M1), S50, S70, NTAG2xx serie, F08 etc
	RFID Protocol	ISO14443-A, ISO14443-B
	Reading distance	20mm~60mm
Accessories	Power Cable	1.5m/230V-AC
Accessories	Ethernet cable	1pc/2.0m
Other	Material	Aluminum Base + ABS Cradle
	Temperature	-30–60℃
	Humidity	40%～80%
	Dimension	335.0×200.0x62.0mm
	Weight	1.5kgs
